1. Introduction

Steel sectional water tanks are commonly used as fire water storage tanks in commercial, residential, and industrial facilities. These tanks are constructed from prefabricated panels bolted together on-site to form a robust, modular storage system. The selection of this type of tank for fire protection applications is based on its durability, modularity, ease of maintenance, and compliance with international fire safety standards such as those from NFPA and local regulations including Qatar Civil Defence Department (QCDD) norms.

2. Purpose of Fire Water Tanks

Fire water tanks serve as a dedicated water reservoir to supply fire suppression systems such as:

• Automatic sprinkler systems

• Standpipe and hose reel systems

• Hydrant systems

• Fire pump systems

These tanks must ensure uninterrupted water supply during a fire emergency for a specified duration, typically 60 to 90 minutes or more, depending on risk classification.

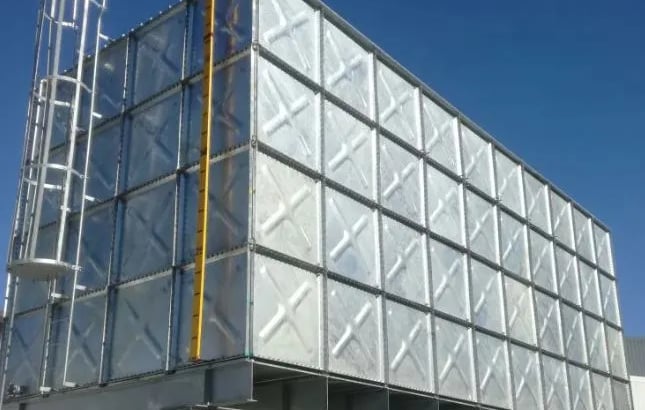

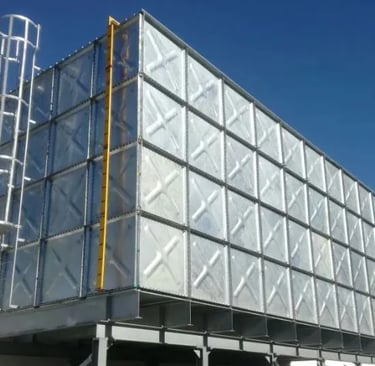

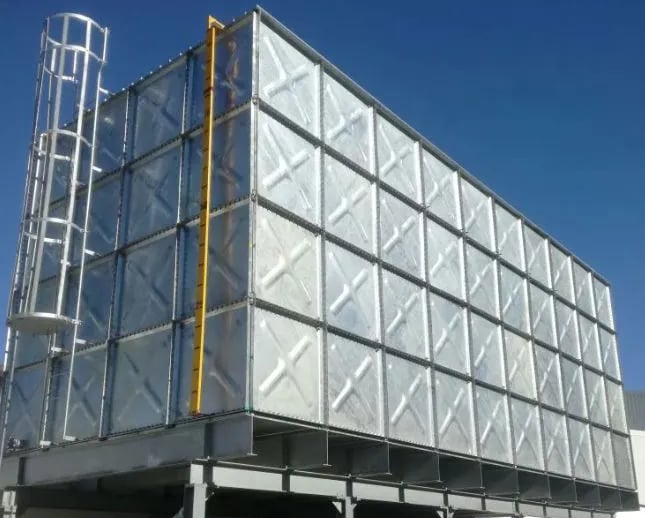

3. Steel Sectional Water Tanks – Description and Advantages

3.1. Description

Steel sectional water tanks are typically made from:

• Hot-dip galvanized steel panels

• Stainless steel (SS304/SS316) for potable or corrosion-resistant applications

• Coated internally with epoxy or polyurethane for corrosion resistance.

3.2. Advantages

• Modular Design: Easy to transport and assemble on site.

• Corrosion Resistance: Treated with protective coatings.

• Capacity Flexibility: Easily expandable based on project requirements.

• Durability: Long service life under harsh environments.

• QCDD Approved Suppliers: Many manufacturers are pre-approved by QCDD, expediting project approvals.

4. NFPA Guidelines

The National Fire Protection Association (NFPA) provides various standards related to fire water storage tanks. The primary reference is:

NFPA 22: Standard for Water Tanks for Private Fire Protection

Key Requirements from NFPA 22:

• Chapter 4 – General Requirements:

  • The tank shall be constructed from approved materials (e.g., steel).

  • Tanks shall be located to ensure reliable operation during emergencies.

• Chapter 5 – Steel Tanks:

  • Tanks must be welded or bolted steel construction.

  • Corrosion protection through internal linings or coatings.

  • Tank roof and venting to prevent contamination or over-pressurization.

• Chapter 12 – Tank Heating and Freezing Protection:

  • Tanks in cold environments must be protected from freezing using immersion heaters or insulation.

• Tank Capacity:

  • Must be sufficient for the most demanding hazard area in the facility.

  • Determined by hydraulic calculations as per NFPA 13, 14, 20, or 24 depending on system type.

• Fire Pump Suction Requirements (per NFPA 20):

  • The suction pipe from the tank must maintain a minimum level of water above the pump suction to prevent cavitation.

5. Qatar Civil Defence Department (QCDD) Requirements

Qatar Civil Defence enforces local regulations aligned with international codes (mainly NFPA) but with region-specific modifications. Approval from QCDD is mandatory before installation and operation of any fire protection system.

QCDD Norms for Fire Water Tanks:

• QCDD Guideline for Fire Fighting System (Latest Edition)

Key Requirements:

1. Dedicated Water Storage:

   • Fire water tanks must be dedicated for fire fighting purposes only.

   • Shared-use is not allowed unless approved.

2. Material and Coating:

   • Only QCDD-approved sectional steel tank suppliers are allowed.

   • Internal coating must comply with potable/non-potable water standards depending on use.

3. Capacity and Duration:

   • Tank capacity is based on hydraulic design and fire load (typically 90 minutes duration).

   • Minimum capacities often range from 90,000 to 200,000 liters or more based on building type and height.

4. Tank Compartmentalization:

   • Tanks must be divided into two equal compartments (or two tanks) to allow maintenance without system shutdown.

5. Level Indication and Monitoring:

   • Level indicators and low-level alarms must be connected to the BMS or Fire Alarm Panel.

6. Access and Maintenance:

   • Tank must be accessible for cleaning and inspection.

   • Internal ladder, manholes, and external platforms as per QCDD design.

7. Location:

   • Tanks can be installed underground or aboveground, but must be accessible and protected from vehicle or external damage.

8. Test and Commissioning:

   • All tanks must be hydrostatically tested, inspected, and approved by QCDD before handover.

6. Application in Qatar Projects

Steel sectional tanks are widely used in Qatar for:

• Commercial buildings

• Residential towers

• Industrial zones

• Data centers and critical infrastructure

They are particularly suitable due to:

• High ambient temperatures

• Saline ground conditions (requiring corrosion-resistant materials)

• Frequent QCDD inspections requiring standardized tank designs

7. Conclusion

Steel sectional water tanks are the preferred solution for fire water storage due to their compliance with NFPA 22 standards and QCDD norms, combined with their flexibility, durability, and ease of installation. Their modular design facilitates custom capacities and ease of maintenance, aligning with QCDD’s strict operational and safety criteria.

8. References

• NFPA 22: Standard for Water Tanks for Private Fire Protection

• NFPA 20: Standard for the Installation of Stationary Pumps for Fire Protection

• QCDD Fire Fighting System Design and Installation Guidelines

• Qatar Civil Defence Authority – Fire Protection System Approval Process

• Manufacturer specifications of QCDD-approved sectional steel tank suppliers (e.g., Balmoral, Pipeco, CST Industries)
